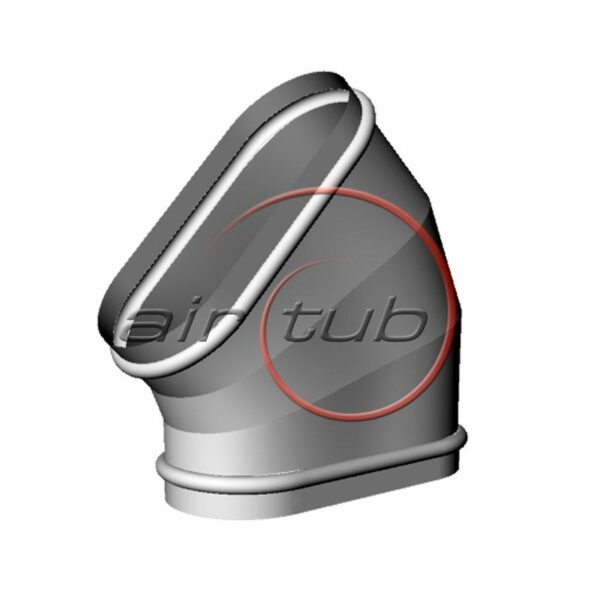

CODO 45º HORIZONTAL OVAL

CODO 45 HORIZONTAL OVAL AIR AIRTUB

CODO 45º HORIZONTAL OVAL

-Descripción:
Codo de45º Horizontal de sección Oval en segmentos.

-Material:
Acero galvanizado con recubrimiento de zinc Z-200/ Z-275 de espesores 0.6, 0.7, 0.8 y 1 mm según la sección.

-Secciones Disponibles:
Desde 150 x 490 hasta 600 x 2020. Alturas standard fijas : 150, 200, 250, 300, 350, 400, 450, 500, 550, 600.  La anchura vendrá definida segun el Ø  del tubo inicial.

-Tipo de unión:
Enchufable  con manguitos. (Accesorios Macho y Tubos Hembra en ambas bocas ) Union mediante Tornillos autotaladrantes o remaches.

-Opciones:

Posibilidad de modificar radios y partes rectas.

Categorías:

A Continuación les indicamos los PVP. Si lo desea puede descargarse la pagina en pdf.

Ficha Técnica Codo 30º

Ficha Técnica Codo 45º Oval Horizontal

Catálogo PDF Airtub

Tarifa  Codo 45º Oval Horizontal



Ø INICIALA150200250300350400450500550600
315B420
48,19
350B470440
55,2058,52
400B550520490465
66,9166,8967,0369,28
450B625600570540515
90,5290,5290,5293,5291,34
500B705680650620595565
103,87103,87103,87103,92101,46101,46
550B785755730700670640615
111,65114,28111,62111,65111,62111,62126,82
600B870835805780750720690665
132,20132,17132,20132,17132,17132,17138,34138,34
650B935910880850825795765740710
146,80143,18146,80146,80146,80146,80149,88149,88173,22
700B1020990965935905880850820790
161,40154,21161,40161,40270,24161,40161,40161,40187,82
750B1095106510351005980950925895865835
188,00165,22188,00188,00188,00188,00188,00188,00188,00188,00
800B1175115011201090106510351005980950920
214,63176,24214,63214,61214,63214,63214,63214,63214,63214,63
850B125012201195116511351105108010501020995
228,04187,25246,07246,07246,07246,07246,07246,07246,07246,07
900B1335130512751250122011901165113511051080
241,46198,28277,51277,51277,51277,51277,51277,51277,51277,51
950B1405138013501320129012651235121011801150
254,87209,28305,65305,65305,65305,65305,65305,65305,65305,65
1000B1490146014351405137513501320129012651235
268,28220,30333,79333,77333,79333,79333,79333,79333,79333,79
1100B1650162015901565153515051475145014201390
295,12243,13403,86403,86403,86403,86403,86403,86403,86403,86
1250B1885185518251800177017401715168516551625
335,35276,31458,95469,57469,58469,57469,57469,57469,57469,52
1400B2120209020602035200519751950192018901865
375,61309,46514,02525,84525,86525,86525,86525,86525,86525,86
1500B22202190216021352105207520502020
550,74563,40563,42563,32563,26563,32563,26563,26
