CRUCES CÓNICAS A 45º INOXIDABLES

CRUCES CONICAS 45 INOXIDABLES AIR INOX AIRTUB

CRUCES CÓNICAS A 45º INOXIDABLES

-Descripción:

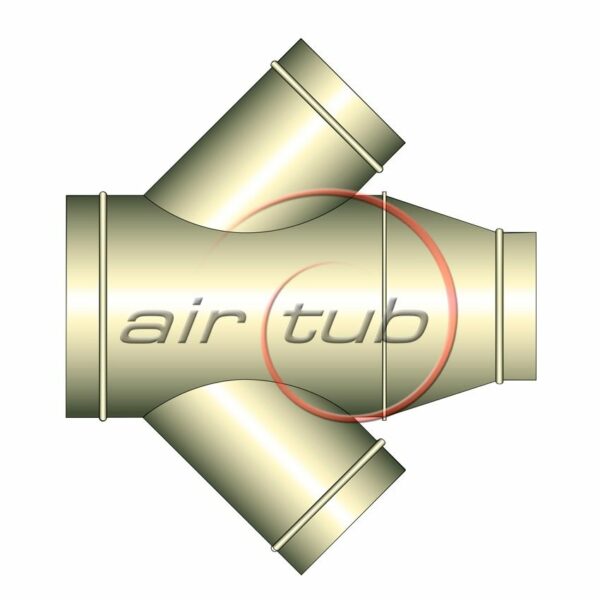

Cruces Cónicas a 45º construidas a partir de 5 piezas  ( tubo principal recto + reducción cónica con cuello en una boca e injertos inclinados a 45º perpendiculares entre si a 180º) El diametro del injerto siempre sera inferior al tubo principal.

-Material:
Acero Inoxidable AISI 304-2B de espesor 0.5 y 0.6 mm según el diámetro

-Diámetros Disponibles:
Desde Ø 80 hasta Ø 1600

-Tipo de unión:
Enchufable (Accesorios Macho y Tubos Hembra en ambas bocas ) Union mediante Tornillos autotaladrantes o remaches.

-Opciones:
Se puedan fabricar cruces con diferentes grados de inclinación en los injertos, variar el angulo entre injertos, diámetros a medida y modificar longitudes tanto en el tubo principal como en el injerto. Posibilidad de acabado M/H ,unión con Brida tipo “Metu”, brida plana (2/3 mm), tapa final e incluso malla electrosoldada.

Categorías:

A Continuación les indicamos los PVP. Si lo desea puede descargarse la pagina en pdf.

Ficha Técnica Codo 30º

Ficha Técnica Cruces Cónicas a 45º Inox

Catálogo PDF Airtub

Tarifa Cruces Cónicas a 45º Inoxidables



Ø80100125150160175200225250275300315350400450500550600630650700750800850900950100010501100115012001250130014001500
10071,48
12575,4076,31
15081,4282,4994,25
16085,3488,04101,45108,98
17589,2893,60108,65116,50123,05
20094,90100,27110,74124,36129,60134,83
225108,91111,25128,29135,86144,26152,64155,00
250114,96125,93136,93154,45157,22159,97169,64174,76
275133,50147,94160,21162,06163,88173,30192,68206,84
300140,05159,18167,54172,01176,46190,60205,50211,81221,89
315143,72165,46179,34180,13180,92205,78212,05225,41232,36240,84
350161,78174,37181,16191,89202,62212,20225,20232,21246,89267,83272,02
400165,73181,16199,50204,68209,86223,06231,97246,89265,98284,05307,63340,86
450168,10187,98204,98211,40217,81231,18246,89262,34279,88306,84347,68380,39418,24
500203,16215,47223,19230,90246,61264,40283,80307,09345,07390,08419,54460,00496,37
550246,61264,54283,80306,06356,59389,03424,66444,43490,88523,73555,67
600284,84303,17356,83388,00421,50444,29490,88507,89545,20589,84645,34
630370,32400,82431,06464,63499,78526,22568,70620,62669,04696,19
650383,81413,64440,62484,98508,68544,54592,20651,37692,72723,36746,16
700427,52487,49508,68547,19592,46652,40693,26723,10740,24768,97797,70
750518,90547,19639,34669,17709,76732,67780,05837,91845,95853,99907,93
800634,08668,10704,75732,53775,44840,37884,38906,24928,08943,791.018,93
850683,84717,85775,73843,02882,79928,08943,92959,761.018,931.037,281.093,02
900761,84856,09886,46932,81956,10981,771.007,411.036,731.102,191.147,221.191,97
950867,08935,15955,071.011,071.031,501.051,921.114,751.142,261.191,731.246,971.320,67
1000927,56967,611.013,961.050,611.086,351.122,101.134,131.195,911.238,841.322,221.343,581.438,28
10501.072,461.115,541.158,611.187,801.259,661.306,131.380,541.460,081.507,421.559,65
11001.094,331.144,731.195,131.241,471.323,421.373,401.438,861.576,561.576,561.611,861.654,821.697,77
11501.125,621.190,161.254,701.309,671.378,461.451,951.517,271.631,941.631,941.685,331.737,371.789,421.851,10
12001.156,901.235,581.314,261.377,861.433,521.530,491.595,681.687,321.687,321.758,791.819,921.881,051.912,781.944,52
12501.382,321.418,451.529,421.593,581.679,701.732,871.732,871.789,681.849,381.909,071.994,622.080,162.194,56
13001.650,141.712,451.841,771.930,762.041,262.041,262.153,862.180,032.206,202.301,362.396,532.609,902.744,21
14001.835,771.916,642.029,102.118,232.118,232.225,062.286,312.347,562.443,582.539,602.719,342.807,152.950,25
15002.004,892.118,522.246,762.246,762.345,472.444,052.542,622.626,402.710,162.845,513.009,803.107,863.326,17
16002.138,542.259,742.396,542.396,542.501,842.606,992.712,122.801,502.890,853.035,223.210,463.315,043.547,92
ú El nominal es la boca grande2.281,122.410,402.556,312.556,312.668,622.780,782.892,952.988,263.083,573.237,563.424,483.536,053.784,44
