TES CON REDUCCIÓN A 90º

TES CON REDUCCIÓN A 90º

-Descripción:

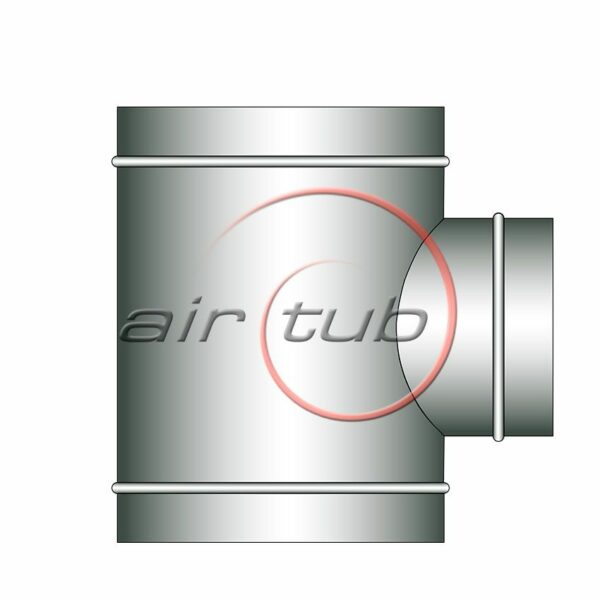

TES con Reducción  90º construidas a partir de dos piezas ( tubo principal con injerto perpendicular) El diametro del injerto siempre sera inferior al tubo principal.

-Material:
Acero galvanizado con recubrimiento de zinc Z-200/ Z-275 de espesores 0.5,0.6,0.8 y 1 mm según el diámetro

-Diámetros Disponibles:
Desde Ø 80 hasta  Ø 1600

-Tipo de unión:
Enchufable (Accesorios Macho y Tubos Hembra en ambas bocas ) Union mediante Tornillos autotaladrantes o remaches.

-Opciones:
Se puedan fabricar tes con diferentes grados de inclinación en el injerto, diámetros a medida y modificar longitudes tanto en el tubo principal como en el injerto. Posibilidad de acabado M/H ,unión con Brida tipo “Metu”, brida plana (2/3 mm), tapa final e incluso malla electrosoldada.

Categorías:

A Continuación les indicamos los PVP. Si lo desea puede descargarse la pagina en pdf.

Ficha Técnica Codo 30º

Ficha Técnica Tes con Reducción a 90º

Catálogo PDF Airtub

Tarifa Tes con Reducción a 90º



Ø8010012515016017520022525027530031535040045050055060063065070075080085090095010001050110011501200125013001400
10010,25
12510,5710,90
15011,5411,9013,81
16011,8012,1714,0315,12
17512,0412,4114,2316,2117,12
20012,4812,8814,9316,9718,0219,08
22514,4814,9317,0618,9820,1821,3824,41
25014,7815,2517,3519,2820,8922,4925,3428,46
27515,7216,2118,2320,0921,7023,3226,2929,1730,43
30015,8516,3419,0821,3822,5523,7027,1629,3632,2034,61
31515,9716,4619,0821,4822,7524,0027,3629,6832,2834,8035,83
35017,8118,3621,9824,5026,5028,4631,2733,7036,6439,7642,5845,43
40019,3819,9923,3226,0427,7729,4732,3935,3838,5741,3845,5246,6349,34
45021,4422,1025,3428,1629,8331,4934,5137,4440,5142,3846,4448,3451,6761,56
50022,5123,2027,4630,0731,8833,7037,1439,4642,5845,2248,5451,4755,5163,5869,64
55024,2825,0330,1832,2835,3338,3541,3845,4349,4554,4959,5464,7966,8267,4278,0281,73
60025,7526,5431,2734,4038,3942,3843,3947,4452,4857,5361,5666,6169,7270,4481,7385,7893,04
63035,2739,0842,8943,9048,4452,9858,5462,5767,9270,6971,1581,7390,2896,89101,38
65036,1339,7643,3944,3849,4553,4859,5463,5869,2271,6571,8481,7394,75100,72105,86111,46
70046,4451,4754,4961,5665,6070,5473,9778,7188,8094,87101,93112,01117,06122,10
75047,4452,4857,5362,5768,6372,4675,0085,0893,8496,89105,97114,02123,11132,19146,44
80049,6656,3059,5465,6070,5473,4679,3290,01100,09101,93109,03118,18127,31136,44147,34162,48
85082,6489,1192,83102,23122,10143,40157,02162,77166,15169,54172,75180,53182,65
90090,6293,84104,96112,20130,18146,94159,46167,11169,28171,44179,93185,89198,10211,40
95092,0399,95116,16125,94140,26156,62162,66171,36174,79178,21185,89197,99204,85217,78231,58
100096,48117,26125,35140,26156,22163,57170,44172,66176,75180,84195,78206,48214,13226,25233,90245,02
1050170,52175,24179,58183,91197,90206,69214,19229,78239,05268,39288,29
1100170,59177,82182,40187,00200,00206,87214,22233,30244,20291,74308,18317,58
1150173,72179,02186,26193,51203,84211,87224,28240,68267,72300,37317,98326,96335,54
1200176,84180,22190,10200,00207,67216,86234,34248,04291,24309,00327,76335,95344,14355,80
1250193,04200,52208,00220,84241,08261,56292,54311,41326,16346,24353,95361,67367,48373,26
1300217,27240,32256,42288,80307,68329,18350,27361,46367,93374,40387,31400,22415,57
1400236,29258,49288,80308,39331,20344,32358,85378,62386,70394,78404,16413,54433,31450,98
1500259,25287,71309,00324,74345,32357,34374,40399,41404,36409,31417,48425,65453,30474,19489,23
1600276,53306,89329,60346,39368,35381,16399,36426,04431,33436,60445,31454,03483,53505,80521,84
