TES CÓNICAS A 90º

-Descripción:

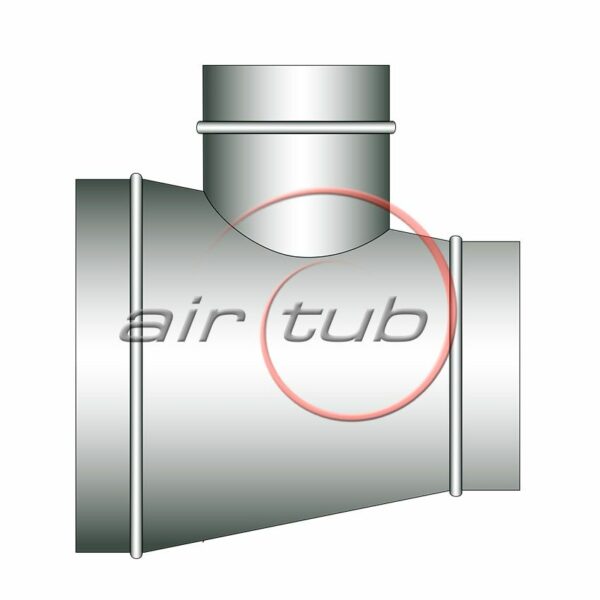

TES Cónicas a 90º construidas a partir de 4 piezas  ( tubo principal cónico con cuellos en cada boca e injerto 90 º) El diametro del injerto siempre sera inferior al tubo principal.

-Material:
Acero galvanizado con recubrimiento de zinc Z-200/ Z-275 de espesores 0.5,0.6,0.8 y 1 mm según el diámetro

-Diámetros Disponibles:
Desde Ø 80 hasta Ø 1600

-Tipo de unión:
Enchufable (Accesorios Macho y Tubos Hembra en ambas bocas ) Union mediante Tornillos autotaladrantes o remaches.

-Opciones:
Se puedan fabricar tes con diferentes grados de inclinación en el injerto, diámetros a medida y modificar longitudes tanto en el tubo principal como en el injerto. Posibilidad de acabado M/H ,unión con Brida tipo “Metu”, brida plana (2/3 mm), tapa final e incluso malla electrosoldada.

Categorías:

A Continuación les indicamos los PVP. Si lo desea puede descargarse la pagina en pdf.

Ficha Técnica Codo 30º

Ficha Técnica Tes Cónicas a 90º

Catálogo PDF Airtub

Tarifa Tes Cónicas a 90º



Ø80100125150160175200225250275300315350400450500550600630650700750800850900950100010501100115012001250130014001500
10016,464
12517,80820,04
15020,08821,623,616
16021,03622,524,32425,176
17521,98423,425,03226,0428,38
20023,35225,53627,45629,06430,73232,388
22525,03227,6629,47233,09634,41635,72440,164
25027,15629,36433,20436,13237,53638,95240,51244,196
27528,5632,19636,13238,24439,25240,2643,53645,62448,84
30031,27235,47237,4439,25241,90444,54446,22449,75250,66454,696
31534,4437,4439,25244,79645,21645,62449,84850,55654,69656,30456,724
35043,53645,21647,23249,24850,25654,38455,9256,92859,83266
40044,92847,6449,00850,35252,57254,69657,31261,5666,40870,53676,596
45049,34449,94450,5253,68857,31261,64467,3271,73676,51289,712103,116
50053,26857,73261,64466,81672,55279,6288,2100,716105,312112,62
55060,75666,40871,5879,11688,104100,8105,768111,312118,68129,972
60064,78871,5875,58889,208100,092105,864112,2118,368126,36131,088140,628
63074,0482,39294,704103,056108,384112,236119,688126,66135,132141,06145,656
65076,51289,208100,212106,008110,904112,26121,008126,948139,164141,48150,264155,304
70099,204103,236109,176111,192120,144127,056136,848141,072150,564154,812160,356165,9
750108,672111,048119,376127,452133,404140,472149,952156,216164,808170,304175,8184,836
800116,856127,368133,608140,472148,632159,84165,696175,992180,948185,892192,744204,036
850134,112139,668148,596156,216167,328174,888186,9191,412195,924204,132220,092237,3
900135,132148,596156,216167,328176,4190,92195,78199,908204,036212,172237,252252,48277,32
950176,4191,616193,632195,972200,1204,24233,4252,528276,504285,744305,976
1000182,856201,624197,184205,152219,84234,528261,564273,672286,788306,984317,784339,36
1050201,168222,768235,452248,124269,736282,3297,192312,384328,524354,204378,12
1100205,152240,384251,052261,72277,908290,94307,584317,784339,276369,048402,024415,956
1150233,712260,208267,228274,26292,74306,876324,528338,664363,468395,58417,576429,912440,64
1200262,272280,032283,404286,788307,584322,824341,484359,544387,66422,112433,128442,248451,368475,86
1250322,716340,284359,448387,804420,996432,12442,2460,368470,808481,248500,376519,492
1300389,136411,528427,668445,236473,472485,4509,4517,584525,756539,484553,2578,316
1400413,64433,128445,032462,576478,524503,76536,844546,84556,836567,636578,436599,82634,956
1500442,296445,032462,468483,576509,712535,836556,836568,14579,444592,356605,28642,012680,964738,072
1600471,78474,696493,296515,82543,696571,56593,952606,012618,072631,848645,624684,816726,36787,272839,748
