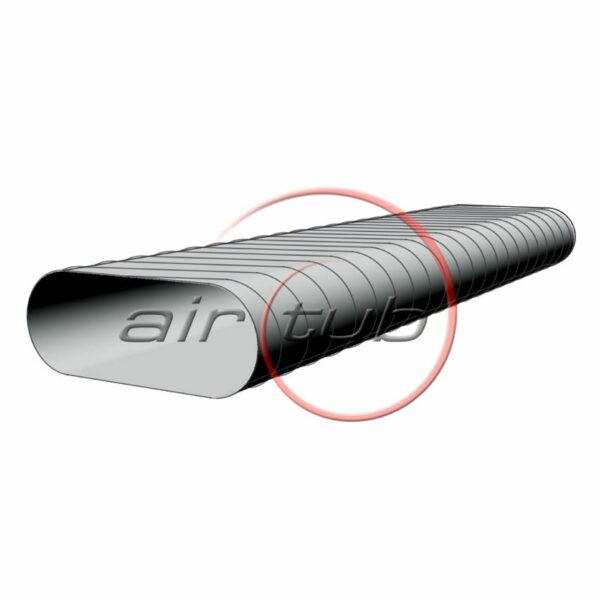

TUBO OVAL

A Continuación les indicamos los PVP. Si lo desea puede descargarse la pagina en pdf.

Ficha Técnica Tubo Oval

Tabla de Equivalencia de caudal de Oval a Circular

Tarifa Tubo Oval

Ø TUBO INICIAL	A	150	200	250	300	350	400	450	500	550	600
315	B	420
		30,408
350	B	470	440
		37,08	35,376
400	B	550	520	490	465
		40,416	40,416	39,192	42,36
450	B	625	600	570	540	515
		44,112	44,112	44,112	47,664	49,608
500	B	705	680	650	620	595	565
		52,968	52,968	52,968	52,968	55,128	55,128
550	B	785	755	730	700	670	640	615
		60,636	60,636	60,636	60,636	60,636	60,636	65,712
600	B	870	835	805	780	750	720	690	665
		71,688	71,688	71,688	71,688	71,688	71,688	71,688	71,688
650	B	935	910	880	850	825	795	765	740	710
		78,132	78,132	78,132	78,132	78,132	78,132	78,132	78,132	78,132
700	B	1020	990	965	935	905	880	850	820	790
		84,54	84,54	84,54	84,54	84,54	84,54	84,54	84,54	84,54
750	B	1095	1065	1035	1005	980	950	925	895	865	835
		94,656	94,656	94,656	94,656	94,656	94,656	94,656	94,656	94,656	94,656
800	B	1175	1150	1120	1090	1065	1035	1005	980	950	920
		104,76	104,76	104,76	104,76	104,76	104,76	104,76	104,76	104,76	104,76
850	B	1250	1220	1195	1165	1135	1105	1080	1050	1020	995
		111,312	111,312	111,312	111,312	111,312	111,312	111,312	111,312	111,312	111,312
900	B	1335	1305	1275	1250	1220	1190	1165	1135	1105	1080
		117,576	117,624	117,624	117,624	117,624	117,624	117,624	117,624	117,624	117,624
950	B	1405	1380	1350	1320	1290	1265	1235	1210	1180	1150
		124,404	124,404	124,404	124,404	124,404	124,404	124,404	124,404	124,404	124,404
1000	B	1490	1460	1435	1405	1375	1350	1320	1290	1265	1235
		130,944	130,692	130,476	130,476	130,476	130,476	130,476	130,476	130,476	130,476
1100	B	1650	1620	1590	1565	1535	1505	1475	1450	1420	1390
		144,048	143,76	174,6	174,6	174,6	174,6	174,6	174,6	174,6	174,6
1250	B	1885	1855	1825	1800	1770	1740	1715	1685	1655	1625
		163,68	163,356	198,408	192,972	192,972	192,972	192,972	192,972	192,972	192,972
1400	B	2120	2090	2060	2035	2005	1975	1950	1920	1890	1865
		183,324	182,952	222,204	253,632	253,632	253,632	253,632	253,632	253,632	253,632
1500	B			2220	2190	2160	2135	2105	2075	2050	2020
				238,092	271,74	271,74	302,52	302,52	302,52	302,52	302,52

EQUIVALENCIA DE CAUDAL DE TUBO OVAL A TUBO CIRCULAR

Ø INICIAL	A	150	200	250	300	350	400	450	500	550	600
315	B	420
Ø EQUIVALENTE		250
350	B	470	440
Ø EQUIVALENTE		275	300
400	B	550	520	490	465
Ø EQUIVALENTE		300	350	350	400
450	B	625	600	570	540	515
Ø EQUIVALENTE		315	350	400	450	450
500	B	705	680	650	620	595	565
Ø EQUIVALENTE		350	400	400	450	450	500
550	B	785	755	730	700	670	640	615
Ø EQUIVALENTE		350	400	450	500	500	550	550
600	B	870	835	805	780	750	720	690	665
Ø EQUIVALENTE		400	450	450	500	550	600	600	650
650	B	935	910	880	850	825	795	765	740	710
Ø EQUIVALENTE		400	450	500	550	600	600	650	650	700
700	B	1020	990	965	935	905	880	850	820	790
Ø EQUIVALENTE		400	450	500	550	600	650	650	700	750
750	B	1095	1065	1035	1005	980	950	925	895	865	835
Ø EQUIVALENTE		400	500	550	600	650	650	700	750	750	800
800	B	1175	1150	1120	1090	1065	1035	1005	980	950	920
Ø EQUIVALENTE		450	500	550	600	650	700	700	750	800	800
850	B	1250	1220	1195	1165	1135	1105	1080	1050	1020	995
Ø EQUIVALENTE		450	500	550	600	650	700	750	800	800	850
900	B	1335	1305	1275	1250	1220	1190	1165	1135	1105	1080
Ø EQUIVALENTE		450	500	550	650	650	700	750	800	850	900
950	B	1405	1380	1350	1320	1290	1265	1235	1210	1180	1150
Ø EQUIVALENTE		450	550	600	650	700	750	800	850	850	900
1000	B	1490	1460	1435	1405	1375	1350	1320	1290	1265	1235
Ø EQUIVALENTE		500	550	600	650	700	750	800	850	900	950
1100	B	1650	1620	1590	1565	1535	1505	1475	1450	1420	1390
Ø EQUIVALENTE		550	600	650	700	750	800	850	900	950	1000
1250	B	1885	1855	1825	1800	1770	1740	1715	1685	1655	1625
Ø EQUIVALENTE		600	650	700	750	800	850	900	950	1000	1050
1400	B	2120	2090	2060	2035	2005	1975	1950	1920	1890	1865
Ø EQUIVALENTE		650	700	750	800	850	900	950	1000	1050	1100
1500	B			2220	2190	2160	2135	2105	2075	2050	2020
Ø EQUIVALENTE				750	800	900	950	1000	1050	1100	1150
